Evo LPR Engine · AI License Plate Recognition

Plate recognition
trusted at 3,000+ sites

From large apartment complexes built by leading construction companies to commercial buildings and pay parking lots, Evo LPR Engine keeps learning through deep learning and serves as the eyes of your parking system.

LIVE DEMO

Recognition Video

Korean version All Korean plate types
99%plate recognition rate
110msrecognition time (approx.)
3,000+sites nationwide · leading builders
Win · Linux64-bit · embedded included
01Features

Recognition performance proven in the field

Image training keeps raising the recognition rate, and updates are as simple as replacing the model file. Missed and misread plates from the field are fed back into retraining.

Features

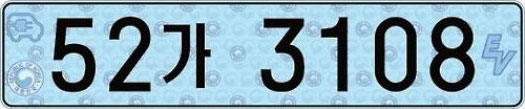

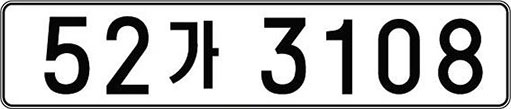

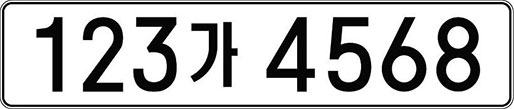

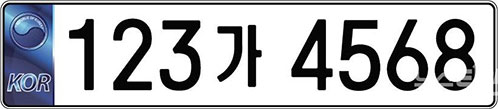

  • All Korean plate typesStandard, 2019 revised, 2020 new and EV plates, with plate-type classification
  • Multiple cameras · multiple platesProcesses two or more cameras at once and reads several plates in a single image
  • ROI · constant speedSet a region of interest; recognition speed stays the same regardless of image size
  • Video recognitionReads plates from live video streams and replaces in-ground loop sensors
  • Parallel processing · load balancingChoose computing resources and use them efficiently with multi-processing
  • Wide camera supportIP cameras (RTSP·HTTP), GenICam, H/W CODEC, fisheye correction
An LPR system in which an AI processor reads vehicle plates on the road in real time and shows them on a control screen
02Parking System

The recognition engine at the heart of parking control

A parking control system is made of software and hardware. Evo LPR Engine is the core module that reads plate numbers from camera images and passes them to the control software.

System
SOFTWARESoftware
Evo LPR Engine plate recognition engineReads plate numbers from camera images and outputs number, position and confidence
OpenCore parking control softwareEntry/exit decisions · season passes · fee settlement · records
HARDWAREHardware
CameraCaptures vehicles in and out
Barrier gateOpens and closes the lane
Vehicle detectorDetects arriving vehicles
LED matrixShows plates and guidance
Edge computerRuns engine, links devices
Payment systemCard module link
Payment system link
Recognition flow
Vehicle arrivesThe detector senses the vehicle
CaptureThe camera captures the plate
Plate recognitionEVO LPR Engine reads
Decision · settlementThe control software checks registration and fees
Display · openLED display, barrier opens
Supply model · future plans
01LOCAL

Local software

  • Evo LPR EngineProtected as core technology · supplied under license
  • OpenCoreParking control software, conditional release planned
02SERVER

Server

  • Operated by Core LogicCore Logic runs the servers and provides recognition as a service
  • Turnkey licensingThe engine and the entire server software are licensed as a package
03HARDWARE

Hardware

  • Online storePlanned sales of verified equipment: cameras, barriers, detectors, LED matrices, edge terminals and payment systems

These supply models are planned for the future; detailed terms will be set by agreement.

03Deployment

On site, or on the server

Today most parking systems are local: the engine and control software run on a PC at each site. Core Logic is also preparing a server model that moves the engine and software to a server and leaves only a small edge terminal on site.

Two configurations
LOCALAvailable

Local · EVO LPR EngineStandard PC / edge terminal

Site
On-site computerEvo LPR Engine + OpenCore
Controls each device directly
CameraBarrierDetectorLED matrixPayment

※ Each site has its own PC, where the engine and control software are installed and managed. It runs entirely on site without an internet connection.

SERVERIn pilot operation

Server · EVO LPR ServerServer · workstation / cloud

Server
LPR serverEvo LPR Engine + control software
Video uploadResults returned
Site
Edge terminal · Raspberry Pi classOne edge terminal per site
Controls each device
CameraBarrierDetectorLED matrixPayment

※ A low-cost edge terminal replaces the PC and the server handles recognition. The server and sites are connected over the internet.

Server advantages
Lower site costA low-cost edge terminal instead of a PC, swapped out immediately if it fails
Unified operationRecognize and manage many sites from one server
One-step upgradesUpdate the engine and software once, on the server
ItemLocalServer
Engine · operating SWOn-site computerServer (workstation · AWS etc.)
Site equipmentPC + parking equipmentEdge terminal + parking equipment
Payment · equipment controlOn-site computerSite edge terminal
UpgradesInstalled at each siteOnce, on the server
Managing many sitesEach site managed separatelyAll sites managed from one server
04Lineup · License

A lineup for every site size

Local editions are graded by the number of channels they can recognize at the same time, with the same lineup on Windows and Linux (including embedded). A server version that recognizes many sites in one place is also being prepared.

Lineup
ItemBasic · 2chPro · 8chEnterprise·16chStreamLPR Engine ServerPilot
ConfigurationLocalOn-on-site computerRemoteWorkstationRemoteServer / cloudLocalOn-on-site computerEngine + control software
UseSmall general sitesMid-size commercial facilitiesLarge · complex facilitiesLoop sensor replacementCentral recognition for many sites
RecognitionStill imagesCaptured framesStill imagesCaptured framesStill imagesCaptured framesLive videoStreamSite video streams
EnvironmentWindows · LinuxWindows · LinuxWindows · LinuxWindows · LinuxWorkstation · AWS

Pro and Enterprise require a separate consultation and contract.

License

Free updates

  • Free updates after purchase
  • Terms by product — please inquire

License key

  • A license key is required per product
  • Channels are set by the product grade

Activation

  • Soft license key
  • Hard license key
    (existing customers)
Applications
Illustration of a parking barrier and a carParking control
Apartments · public institutions · government offices · commercial facilities, multiple plates · plate types
Illustration of a camera monitoring vehicles on a roadRoad traffic · parking enforcement
IP · GenICam cameras, H/W CODEC
Illustration of a military truckMilitary vehicles
Reads unit numbers and plate numbers together
Illustration of plate recognition on a dump truckCommercial vehicles · construction
Dump trucks · mixer trucks, gate control at construction sites and ready-mix plants
Overseas versions
Thailand · completedPhilippinesIndonesiaVietnamEU
05Specification

Specs

Intel platforms are supported. Check CPU and graphics specs before deployment.

Specs
Intel6th–14th gen Core · Core Ultra · Xeon
Intel graphicsIntel integrated graphics · Arc GPU
Memory4 GB minimum · 8 GB recommended
WinWin 10/11 · Server 2016+, 64bit
LinuxUbuntu 20.04 LTS, 64bit
Not supportedIntel CPUs older than 5th gen, 32-bit OS
ResolutionMin 1280×720 · up to 1920×1080
StreamingHTTP · RTSP (H264 · H265 · MJPEG)
CameraIP · GenICam-compatible cameras
OutputPlate string · plate position · confidence
Accuracy99%
SpeedAbout 110 ms
06Developers

Developer Center

We provide a range of APIs, sample code and technical documents, and support custom development for the features you need.

Environment

APIs

  • C / C++ · C#
  • Python 3.7 or later
  • Server-side JavaScript

SDK contents

  • Runtime Library
  • Development Resources
  • Sample Codes (C++ · C# · Java · Python)

Dev tools

  • Windows: Visual Studio 2015+, .NET 4.7.2+
  • Linux: GCC 7.5
Download SDK

Windows SDK 64bit

LATEST7.13.0.056 TM260611012026-09-21Download page →

Linux SDK 64bit

LATEST7.12.0.031 TM260611012026-08-26Download page →
Installation
01Check specsCPU · graphics · OS
02Download SDKRuntime · resources · samples
03Install driversGraphics drivers etc.
04Trial licenseRegister the file you receive by email
05Run the sampleTest recognition on your own video right away

The SDK includes a simple sample program so you can test recognition right after downloading. Running it requires a trial license. You can request one on the download page.

07Partnership

Engine, software and hardware in one

We plan to supply the engine under license, the control software through conditional release, and the hardware as verified configurations.

Platform
01ENGINE

Evo LPR Engine

Sales license (right to sell)
  • Sales rights granted to associations
  • Free updates after purchase
  • Custom training on each site's missed and misread plates
02SOFTWARE

OpenCore control software

Conditional release planned
  • Parking control software released under conditions
  • Modify and extend for site needs
  • Standard engine integration (SDK)
03HARDWARE

Reference hardware

Verified configurations · online store
ComputerCameraVehicle detectorLED matrixBarrier gatePayment
Online store planned
How to adopt
01ContactShare your site size and environment
02TrialTest with a trial license
03Site deploymentCamera and equipment integration, technical support
04License · supportFree updates, terms by product — please inquire

GLOBALWe are looking for business partners, including overseas plate-recognition system partners and parking associations.

08Contact

Purchase · inquiries · trials

For product inquiries, trial license requests and technical cooperation, please contact us below.

Contact
  • PersonJae-hyun Lee, Sales Director
  • Office070-4334-5960
  • R&D lab070-4334-5964
  • Mobile010-3262-6781
  • Fax070-7500-5756
